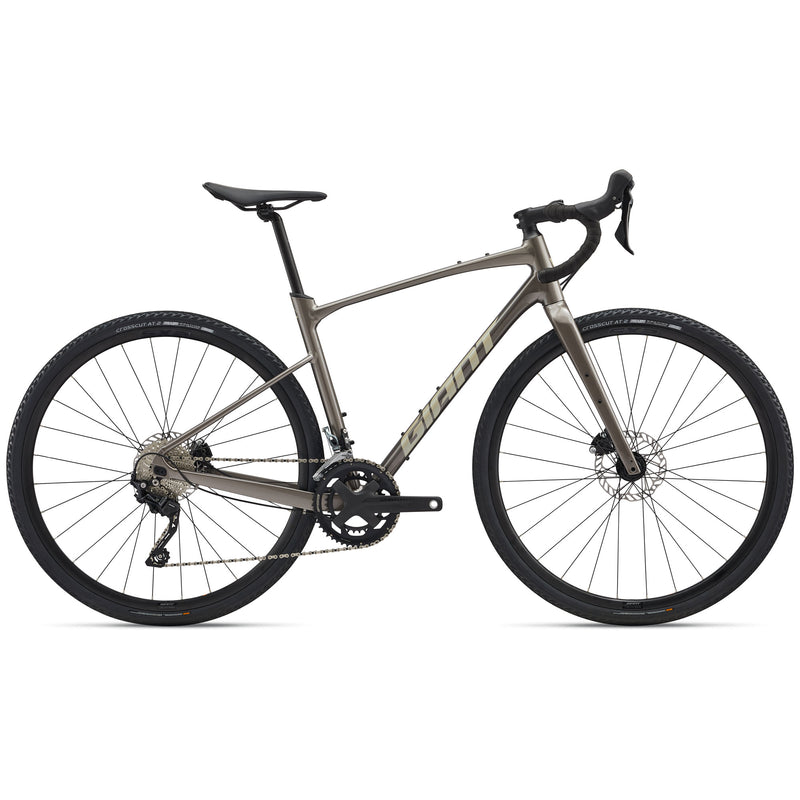

Giant Revolt 1 2025
Call for AvailabilityDescription
About Giant Revolt 1 2025
Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.
Key Performance Factors
Confident Handling: Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned Compliance: Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable To The Terrain: A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Frame Geometry (units in mm unless otherwise indicated)
Frame | XS | S | M | M/L | L | XL |
Seattube Length | 430 | 450 | 470 | 490 | 510 | 530 |
Seattube Angle (Degrees) | 74.0 | 73.5 | 73.5 | 73.0 | 73.0 | 73.0 |
Toptube Length | 540 | 550 | 560 | 575 | 585 | 600 |
Headtube Length | 125 | 135 | 150 | 165 | 180 | 195 |
Headtube Angle (Degrees) | 70.00 | 71.00 | 71.50 | 72.00 | 72.00 | 72.00 |
Fork Rake | 50 | 50 | 50 | 50 | 50 | 50 |
Trail | 78 |
72 |
68 |
65 |
65 |
65 |
Wheelbase | 1029 |
1025 |
1030 |
1035 |
1045 |
1061 |
Chainstay Length | 430 |
430 |
430 |
430 |
430 |
430 |
Bottom Bracket Drop | 80 |
80 |
80 |
80 |
80 |
80 |
Stack | 556 | 570 | 586 | 602 | 616 | 630 |
Reach | 381 | 381 | 387 | 391 | 397 | 407 |
Standover Height | 717 |
734 |
752 |
769 |
786 |
801 |
Stem Length | 50 | 60 | 70 | 80 | 80 | 90 |
Crank Length | 170.0 | 170.0 | 172.5 | 172.5 | 175.0 | 175.0 |
Wheel Size | 700x42C | 700x42C | 700x42C | 700x42C | 700x42C | 700x42C |
About Giant
Founded in 1972 by craftsmen and engineers with one goal: to create a better cycling experience for people around the world by following their three guiding principles: craftsmanship, innovation and inspiration. Giant are a market leader in the bicycle industry, using their innovative manufacturing capabilities to produce quality, lightweight products at an affordable price. They are recognised as the world’s largest bicycle manufacturer.
Frame
Frame: ALUXX-Grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Components
Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem: Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seat Post: Giant D-Fuse, alloy, 14mm offset
Saddle: Giant Approach
Drivetrain
Shifters: Shimano GRX RX-400, 2x10
Front Derailleur: Shimano Tiagra
Rear Derailleur: Shimano GRX RX-400
Brakes: Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano GRX RX-400 hydraulic
Cassette: Shimano HG500, 11x34
Chain: KMC X10
Crankset: FSA Omega Adventure, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket: FSA Mega EXO
Wheels
Rims: Giant S-X2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle
Spokes: Stainless
Tyres: Giant CrossCut AT 2, 700x38c, tubeless
Other
Extras: Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
All specifications subject to change without notice.
