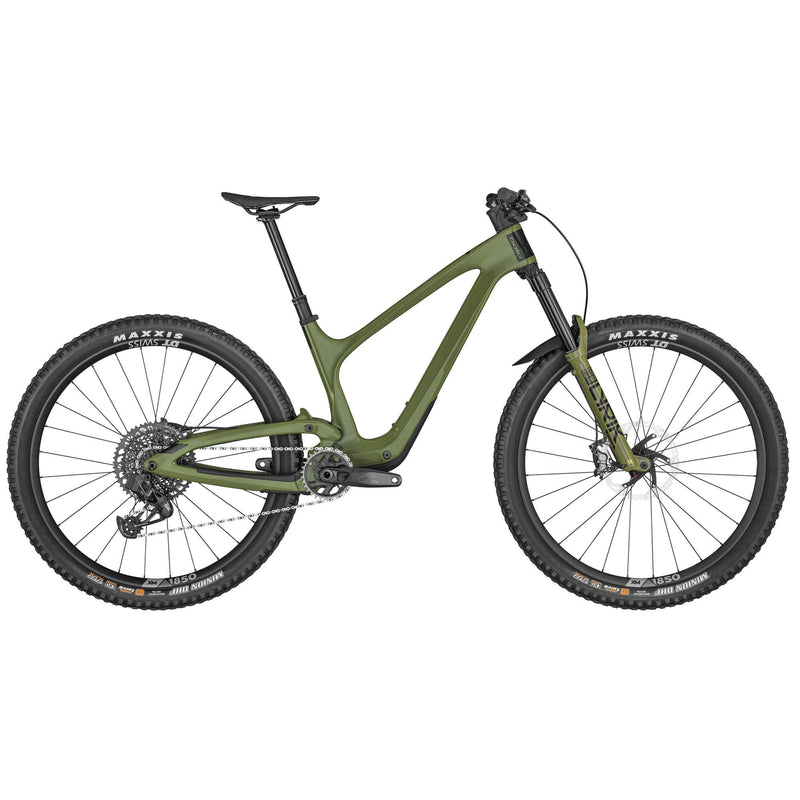

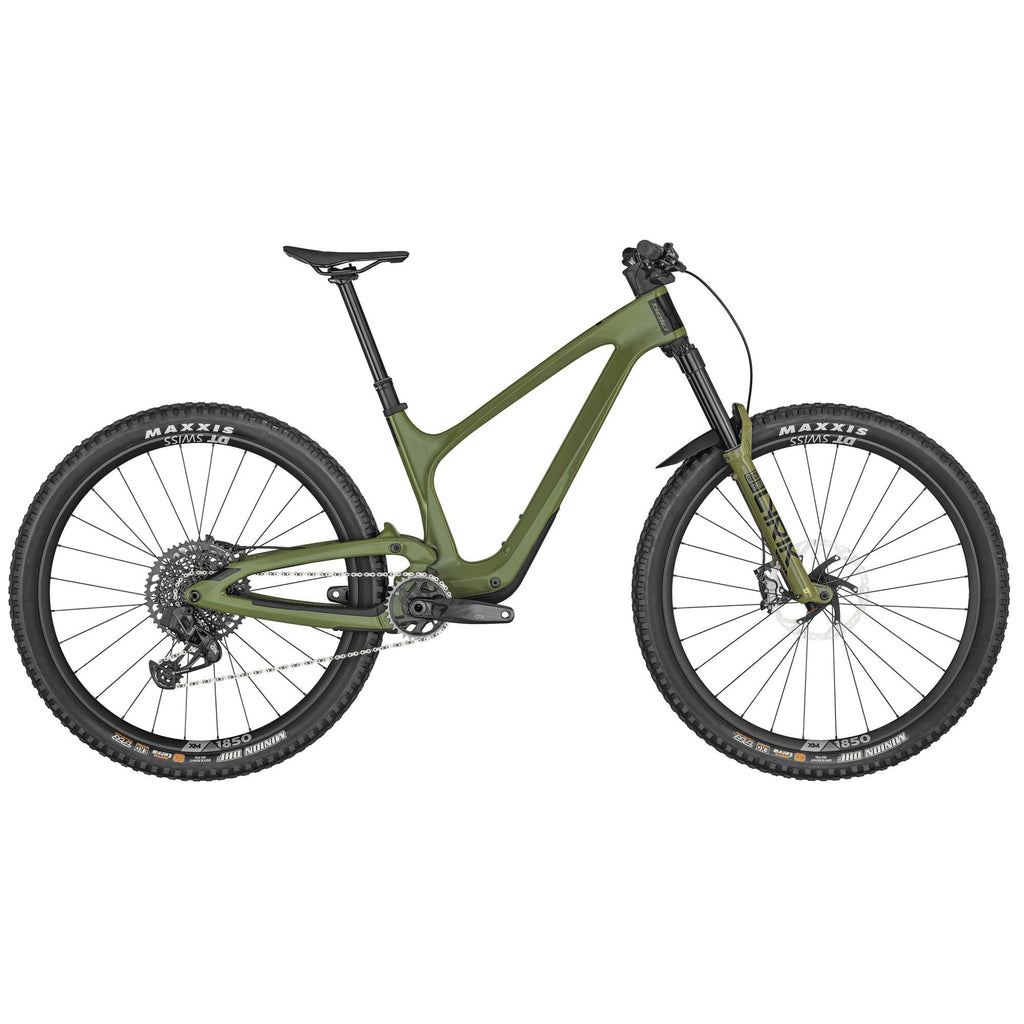

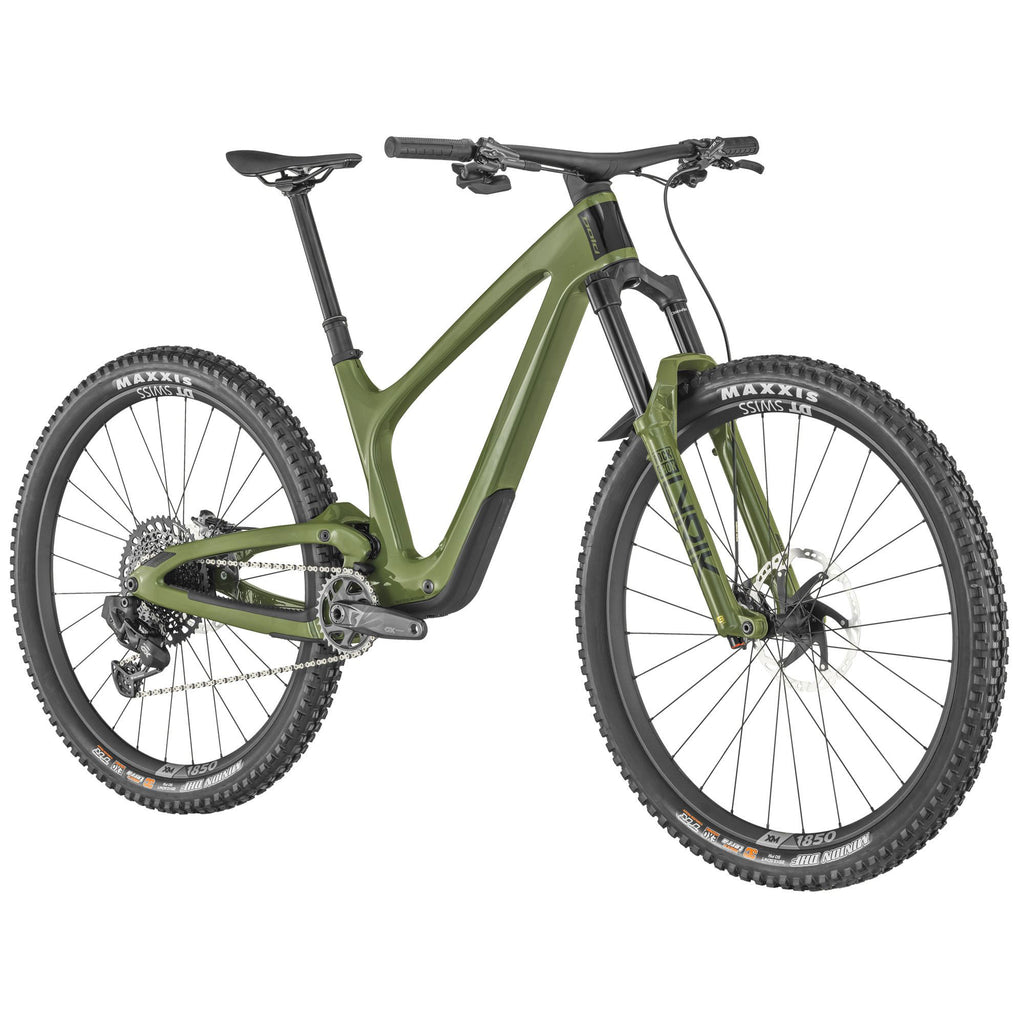

Bold Linkin LT
Description
About Bold Linkin LT
The LINKIN LT is the ideal choice for advanced riders who gravitate towards rough, technical trails. Based on the LINKIN 150 platform, the LT features the same, great IST-VP suspension design with TracLoc. This combination results in a bike that climbs like a mountain goat, while with it's 160mm fork, the LINKIN LT transforms into a fearless companion on the way back down. The LINKIN LT is the most versatile bike in the Bold line-up, something you'll notice right out of the box.
Features
LINKIN Carbon HMX Frame
RockShox Lyrik Ultimate Air, 160mm
RockShox Nude 5 RLC3
SRAM GX Eagle AXS / Wireless
Shimano XT M8120 4 Piston Disc
DT Swiss XM 1850 Spline
Syncros Hixon iC Carbon
Frame Geometry (units in mm unless otherwise indicated)
Frame | S | M | L | XL |
Head Tube Angle (Degrees) |
63.8/64.2 | 63.8/64.2 | 63.8/64.2 | 63.8/64.2 |
Head Tube Length | 90 | 105 | 120 | 135 |
Top Tube Horizontal | 548.6/547.0 | 597.9/596.1 | 631/629.2 | 664.2/662.3 |
Standover Height |
689 | 720 | 746 | 772 |
BB Offset |
-31.9/-25.7 |
-31.9/-25.6 | -32/-25.6 | -32/-25.5 |
BB Height |
343.1/349.3 | 343.1/349.4 | 343.0/349.4 | 343.0/349.5 |
Wheel Base |
1183.9/1185.3 | 1225.3/1226.7 | 1261.8/1263.2 | 1298.2/1299.6 |
BB Center To Top Of Seatube |
365 | 395 | 425 | 455 |
Seat Angle (Degrees) |
77.5/78.4 | 76.8/77.4 | 76.8/77.4 | 76.8/77.4 |
Chainstay | 443.9/435.4 | 434.2/435.4 | 434.2/435.4 | 434.2/435.4 |
Reach |
422/422.5 | 452.5/457.4 | 482.5/487.4 | 512.5/517.5 |
Stack |
605.2/605.0 | 622/618.4 | 635.6/631.8 | 649.2/645.3 |
Stem Length |
40 | 40 | 40 | 40 |
Maximum Seatpost Insertion |
236 | 276 | 301 | 320 |
About Bold Cycles
Founded in Lengnau, a small village near the Jura Mountains in beautiful Switzerland in 2015, Bold Cycles are an innovative, cutting-edge bike company with the goal of providing riders with the most progressive, cutting-edge bikes on the market. They question design and technology and rethink the conventional by pushing through boundaries where innovation takes place and new rules are born.
Frame
Frame: Bold Linkin 150 / Carbon HMX, Integrated Suspension Technology / IST VP, Vario Tech, Head angle and BB height / Syncros Cable Integration System, BB92 / UDH Interface / 12x148mm with 55mm Chainline
Fork: RockShox Lyrik Ultimate Air, Charger 3 Damper, HSC - LSC - LSR adjustable, Butter cups / 15x110mm Maxle Stealth, 44mm offset / Tapered steerer, 160mm travel
Shock: RockShox NUDE 5 RLC3 Trunnion, SCOTT custom w. travel / geo adj, 3 modes: Lockout-Traction Control-Descend, Low Speed Ad.j / Debon Air / Reb. Adj, 185X55mm / Travel 150-100-Lockout
Remote System: TracLoc Technology, Rear Suspension & Dropper Remote, 3 Rear Suspension modes
Headset: Syncros - Acros Angle adjust & Cable Routing HS System, Stainless / +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
Components
Handlebar: Syncros Hixon iC Carbon, Size S & M 15mm rise / Size L & XL 25mm rise, back sweep 8° / 780mm, Syncros Endurance lock-on grips
Seat Post: Syncros Duncan Dropper Post 1.5 34.9mm, Size S 170mm / Size M, L & XL 200mm
Saddle: Syncros Tofino 1.5 Regular, Titanium rails
Drivetrain
Shifters: SRAM GX Eagle AXS Rocker Controller
Rear Derailleur: SRAM GX Eagle AXS 12 Speed, Wireless Electronic Shift System
Brakes: Shimano XT M8120 4 Piston Disc
Rotor: Shimano SM-RT76 / 6 Bolt / 203/F and 180/R
Cassette: SRAM XG1275 / 10-52 T
Chain: SRAM CN GX Eagle
Crankset: SRAM GX Eagle DUB, 55mm CL / 32T
Chainguide: Bold custom
Bottom Bracket: SRAM DUB PF 92 MTB Wide / shell 41x92mm
Wheels
Wheelset: DT Swiss XM 1850 Spline 6 Bolt, F: 15x110mm / R: 12x148mm, 30mm Tubeless ready rim 28H / XD Driver, Syncros Axle w/Removable Lever with Tool
Tyres: Maxxis Minion DHF / 2.5" / 60TPI Foldable, Tubeless Ready / EXO
Other
Extras: Save the Day Kit, SRAM AXS Powerpack, Syncros Fork Fender
Accessories: Syncros Eco Sealant
All specifications subject to change without notice.
